AI scenario cameras

The analysis runs on the camera.

Six models, each built around one job: face, fire, counting, parcels, plates, road lanes.

Request a quoteAll product lines
Line summaryCCTV SUPPLY
4KPlate capture on the 80BG801 series
6Dedicated scenario models
H.265+Compression across the range
4GOn the fire detection model

Six jobs, six models

A scenario camera is only worth the trip if it removes work from the recorder and from the operator. These are the jobs this line covers.

FaceFace recognition

4MP and 5MP models that compare faces at the edge and send events rather than raw streams.

80BAI40M5A2-PTBR-FC
FireFire detection

Flame recognition on a 6MP 4G body, so a yard with no cable still raises the alarm.

80BG601LFA2-PTBR-FI
CountingPeople counting

6MP counting model for doorways and aisles, reporting counts instead of video.

80BG603LFA2-PTBR-PC

The AI line, model by model

Resolution and the feature the model was built for, as listed on the product page and data sheet.

AI scenario cameras
ModelJobResolutionStated capability
80BAI40M5A2-PTBR-FCFace recognition4MPEfficient H.265+ compression
50DAI50FA2-PTBR-FCFace recognition5MPEfficient H.265+ compression
80BG603LFA2-PTBR-PCPeople counting6MPEfficient H.265+ compression
80BG601LFA2-PTBR-FIFire detection6MP4G, efficient H.265+ compression
80BG801SM5A2-PTBA-LPRPlate recognition4KHigh quality imaging at 4K
80BFG403LM7A2-PTBA-RDRoad monitoring4MP1/1.8" sensor, powerful processing core

Frame rate, lens and illumination for each model are in its PDF data sheet. Ask me for the model you are evaluating.

What changes when the camera does the analysis

Four practical consequences for the integrator, not a feature list.

  • Bandwidth drops. An event with a snapshot costs a fraction of a continuous 4K stream.
  • The recorder matters less. Analytics that used to need a server now sit in the housing.
  • Lighting still decides. Recognition needs the face or plate lit: check the IR distance and the mounting angle before the count.
  • Verify against your scene. Recognition rates published for a controlled door do not transfer to a wet loading bay. Test with your own footage.

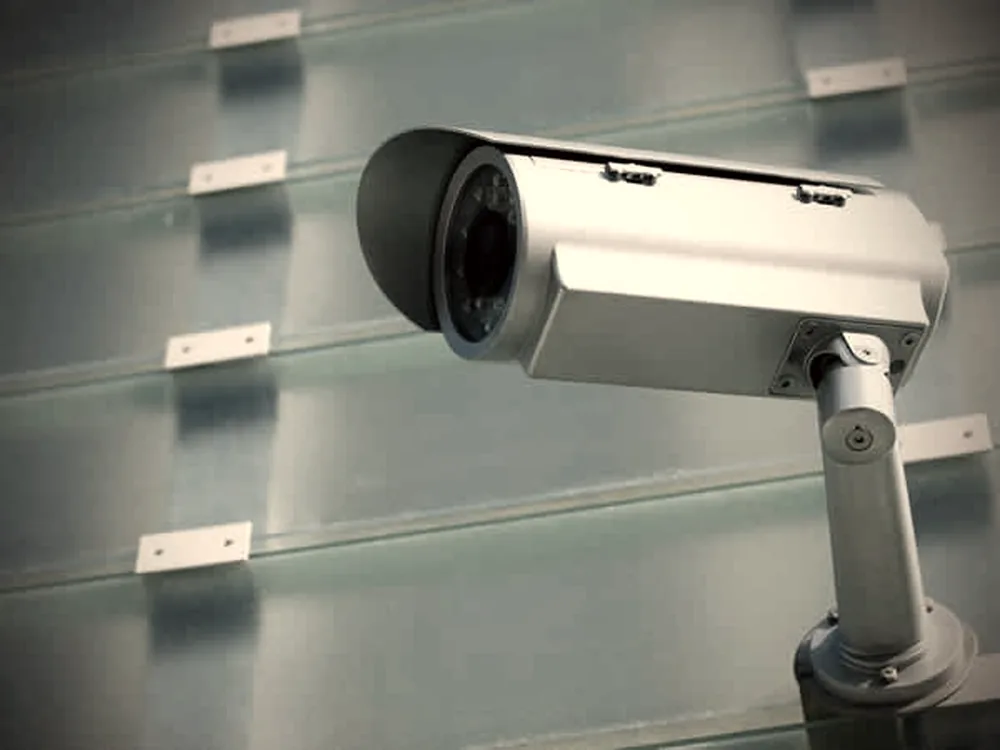

Bullet camera fitted to a pole bracket
Bullet on a pole bracket
Compression
H.265 and H.265+ on the AI models
Integration
Standard streaming and ONVIF where stated on the sheet
Power
12 V DC, with POE on the network models
Ask for
Sample unit and test footage checklist

Where to go next

Traffic and plate captureHighway and parking models, including 4K plate reading.Network and PTZThe general purpose line, from Lite to Ultra.NVR and kitsRecorders that accept the event stream without a server.

Send the site and the model, get a quoted configuration.

Tell us the site type, the channel count and the destination market. I reply with models, options and the documents you asked for.
